Applicable to 1kv-3kV voltage levels, cable operating temperature of 90'c in dry locations;can be installed verticallyindoors and outdoors, as well as on brackets or along walls;widely used in civil buildings, commercial, industrial, largevenues,entertainment venues,and other applications.
Service support
Hotline：
0551-64426668
0551-64320387
Product use
Applicable to 1kv-3kV voltage levels, cable operating temperature of 90'c in dry locations;can be installed verticallyindoors and outdoors, as well as on brackets or along walls;widely used in civil buildings, commercial, industrial, largevenues,entertainment venues,and other applications.
Production range
1.ln addition to conventional cable types, we can produce cables with PVC insulation, rubber insulation, irradiatedpolyolefin insulation, polyethylene sheath,polyolefin sheath, rubber sheath, etc. according to customer needs.2.According to the use characteristics,it can produce:
3.According to the requirements of the customer's use environment, it can also produce low temperature resistantcables, high temperature resistant cables, rat and ant resistant cables, waterproof cables, shielded cables, ultravioletresistant cables,chemical corrosion resistant cables, etc.
Main performance
Using AA8030 series aluminum alloy as the conductor, it is used in 1kv-3kv power distribution systems.The productcomplies with the provisions ofGB/T31840-2015 standard.
Usage Features
During normal operation, the maximum operating temperature of the conductor does not exceed 90'c, and themaximum operating temperature of the conductor during short circuit (with a maximum duration of no more than 5sdoes not exceed 250'c The ambient temperature during installation should not be lower than 0'c, and the minimumbending radius is as follows: single-core cable: unarmored: 20D;armored: 15D: multi-core cable: unarmored.15D:armored: 12D: aluminum alloy interlocking armored cable: 7D, D-cable outer diameter.
Use to
◆ Used for fixed installation and laying in distribution networks or industrial devices
◆ Rated voltage: U0/u:0.6/1kv、1,8/3kV
◆ Specification: number of cores: 1-5 cores;nominal cross section:10-800mm

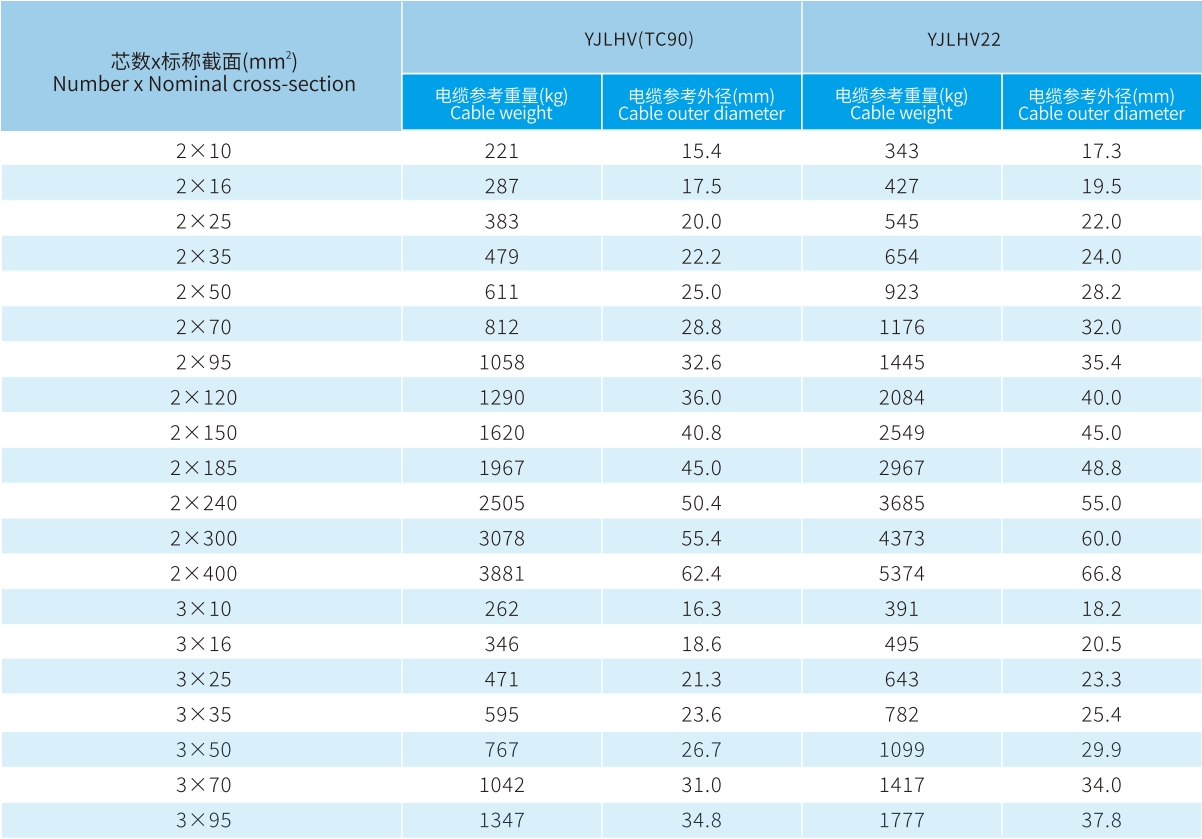

◆ Model: YJLHV(TC9O), YJLHV22, YJLHV62, YJLHS(AC90),YJLHVS2(ACWU90), YJLHV32, YJLHV42, YJLHV72
Nominal insulation thickness of crosslinked polyethylene (XLPE)
0.6/1kV XLPE insulated power cable
The insulation of cross-linked polyethylene insulated power cables adopts cross-linked polyethylene, which useschemical methods to convert linear molecular polyethylene into cross-linked polyethylene with a three-dimensionalnetwork structure, thereby greatly improving the mechanical properties of polyethylene and maintaining excellentelectrical properties.
PVC insulated power cables have good electrical performance and chemical stability.simple structure andconvenient use, suitable for fixed installation on transmission and distribution lines with AC 50Hz and rated voltage olkV and below, Five core power cables are used to separate the neutral and neutral lines in low-voltage distributionsystem engineering to meet the development and safety performance needs of the distribution system, making thesystem operation more stable and ensuring the safety of workers.
This product is suitable for overhead power lines with a rated voltage of 0.6/1kV and below, and can be used as afixed laying or incoming line. This product is extruded with weather resistant high-density polyethylene and weatherresistant polyvinyl chloride insulation outside tightly pressed copper and aluminum conductors. The cable is safe ancreliable, while also possessing excellent mechanical and electrical properties. Advantages such as resistance to electricatraces, surface discharge, and atmospheric conditions. The cable laying gap is smal, saving line corridors, reducing linevoltage, reducing power supply accidents, and ensuring personal safety. it is suitable for mountainous areas, forest areasmining areas, cities, and other occasions, and is an all-weather cable product.
This product is suitable for overhead power lines with a rated voltage of 10kV and below, and can be used as a fixed layingor incoming line, This product is extruded with weather resistant insulation outside tightly pressed copper and aluminumconductors, ensuring safe and reliable cable performance, while also possessing excellent mechanical and electrical propertiesAdvantages such as resistance to electrical traces, surface discharge, and atmospheric conditions. The cable laying gap is smallsaving line corridors, reducing line voltage, reducing power supply accidents, and ensuring personal safety. lt is suitable formountainous areas, forest areas, mining areas, cities, and other occasions, and is an all-weather cable product.
This product is suitable for power transmission and distribution lines with rated voltage of 10kV and below and certaintensile resistance reguirements, Due to its abilitv to withstand a certain tensile streneth,the instalation spacing can be increasedand the laving and operating environment reguirements are more flexible and convenient.
Purpose: Used in control, monitoring, circuits, and protection circuits with rated voltage of 450/750V and below. TyPe:KVV,KVWP,KVWP2,KVVP22,KVW22,KWWP2-22,KWR,KVWRP,KVW32.etc. Specification:nominal cross-section: 0.75-10mm',number of cable cores: 2-6l cores.
Purpose: Used in control, monitoring circuits, and protection circuits with rated voltage of 450/750V and below. Model:KYJV, KYJVP. KYJVP2、 KYJVP22. KYJV22、 KYJVP2-22、 KYJVR、 KYJVRP, KYJV32. KYJY, KYJYP etc. Specification: nominal section:0.75-10mm 2,Number of cable cores: 2-61
Applicable to 1kv-3kV voltage levels, cable operating temperature of 90'c in dry locations;can be installed verticallyindoors and outdoors, as well as on brackets or along walls;widely used in civil buildings, commercial, industrial, largevenues,entertainment venues,and other applications.
This product is suitable for fixed wiring (laving) of power devices with an AC rated voltage of450/750V and below.thas wide applications in low-voltage power lines, daily electrical, instrumentation, and telecommunications equipment.
lt is used to ensure the uninterrupted operation of fire-fighting power and important equipment such as firepumps,fire elevators, local lighting, emergency evacuation instructions, security monitoring, smoke evacuation systems, andself-contained power supplies in case of fire.
